High-Speed 1D/2D Barcode Scanning The device integrates a high-precision QR code scanning engine, enabling rapid and accurate capture of various optical graphic barcodes including 1D barcodes,2D barcodes, damaged barcodes, bent barcodes, and screen codes. Built-in Ministry of...
$435/pc
MOQ: 1 pcs · Volume discounts available on request

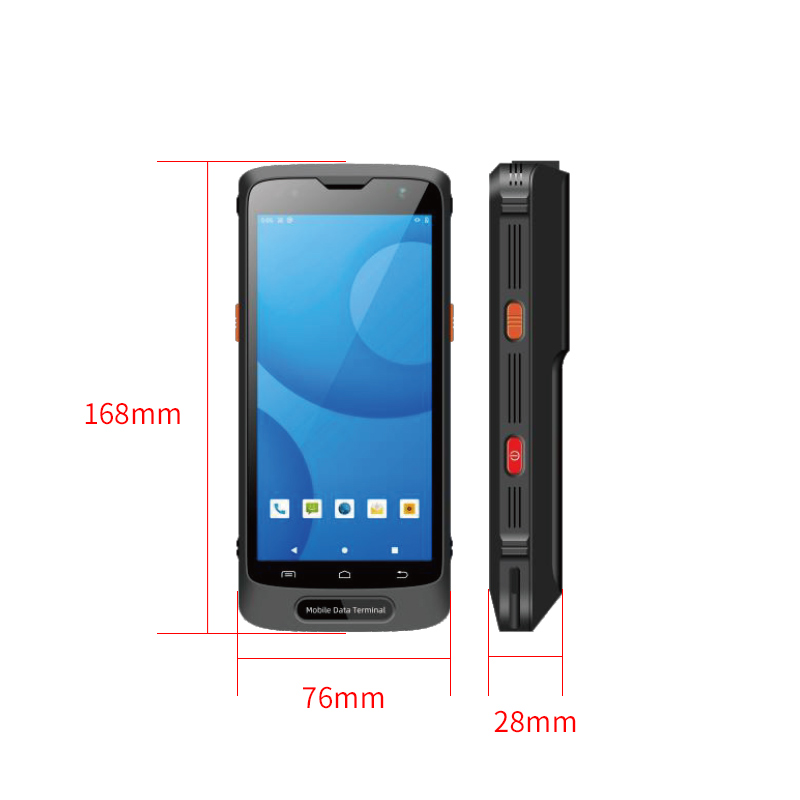

| Overall Dimensions | 168×76×28±2mm |
|---|---|
| Overall Weight | 430 grams |
| Display | 5.5-inch IPS HD display, resolution 720×1440 |
| Touchscreen | Industrial-grade multi-touch capacitive screen |
| Expansion Slot | 2 SIM card slots, 2 PSAM card slots, 1 TF card slot |
| Communication Interface | Type-C data interface |
| Indicator Light | Charging indicator light |
| Keyboard | Scan button, function button |
| Camera | Front 5MP, rear 13MP cameras with flash and autofocus Low-power LED light for emergency illumination |
| Flashlight | Low-power LED lighting for emergency use |
| GPS | GPS + BeiDou dual navigation system with an error range of ±5 meters |
| CPU | Octa-core 64-bit processor, 2.0GHz clock speed |
| Memory Capacity | RAM: 2GB ROM: 16GB (Standard) RAM: 4GB ROM: 64GB (Optional) |
| Expandable Memory | Supports 256GB Micro SD card |
| Operating System | Android 10.0 |
| Data Communication | 4G:TD-LTE Band38/39/40/41 FDD-LTE Band 1,2,3,4,7,17,20 3G:WCDMA( 850/1900/2100MHz); 2G:GSM/GPRS/Edge （850/900/1800/1900MHz） |
| WIFI | Dual-band 2.4GHz/5GHz,Compliant with IEEE 802.11a/b/g/n/ac; |
| Bluetooth | Compliant with Bluetooth 4.1 |
| Operating Temperature | -20℃~50℃ |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Rating | Main unit IP65 |
| Battery Capacity | 5200mAh lithium polymer battery |
| Standby Time | Up to 360 hours of standby time when wireless communication and other features are disabled |
| Standard | 1 lithium battery, 1 power adapter, 1 Type-C charging cable |
| Optional | Charging dock |
| 1D Scanning Engine | High-Performance Scanner |
| Supports 1D barcode types | Supports mainstream common 1D barcodes |
| 2D Scanning Engine | High-Performance Scanner |
| Supports 2D barcode types | PDF417, MicroPDF417,Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet,US Planet, UK Postal, Australian Postal, |
| Supported Frequency | 915MHz, 865MHz (865-868MHz or 902-928MHz) |
| Supported Protocols | Supports EPC C1 GEN2 ISO18000-6C protocol |
| Reading Distance | Optional 0-5m range / Depends on tag and environment |
| Operating Frequency | 13.56MHz |
| Protocol Standard | ISO 14443A/B, ISO 15693, NFC-IP1, NFC-IP2, etc. |
| Tag Standard | M1 cards (S50, S70), CPU cards, NFC tags, etc. |
| Read/Write Range | 3cm–5cm |
| Built-in Modules | Ministry of Public Security Second-Generation ID Card Security Encryption Module |
| Related Functions | Captures and identifies second-generation ID cards for identity verification Supports facial recognition functionality (optional) |
| Module Functions | Fingerprint enrollment/matching/deletion, image processing, etc. |
| Sensors | TCSI biometric fingerprint/FBI fingerprint authentication |
| Sensor Types | Capacitive and inductive |
High-Speed 1D/2D Barcode Scanning
The device integrates a high-precision QR code scanning engine, enabling rapid and accurate capture of various optical graphic barcodes including 1D barcodes,2D barcodes, damaged barcodes, bent barcodes, and screen codes.
Built-in Ministry of Public Security Second-Generation ID Module + Facial Recognition Software for Offline ID-Photo Verification
The device incorporates a Ministry of Public Security second-generation ID card module for rapid, offline ID information retrieval. It also supports integrated facial recognition algorithms for ID-face verification.
Built-in UHF RFID Functionality
The device features built-in UHF RFID capability. Using the 9662 white card as a benchmark, it achieves a reading range of approximately 1.5–6 m(actual rangevaries based on tags and environmental conditions).
