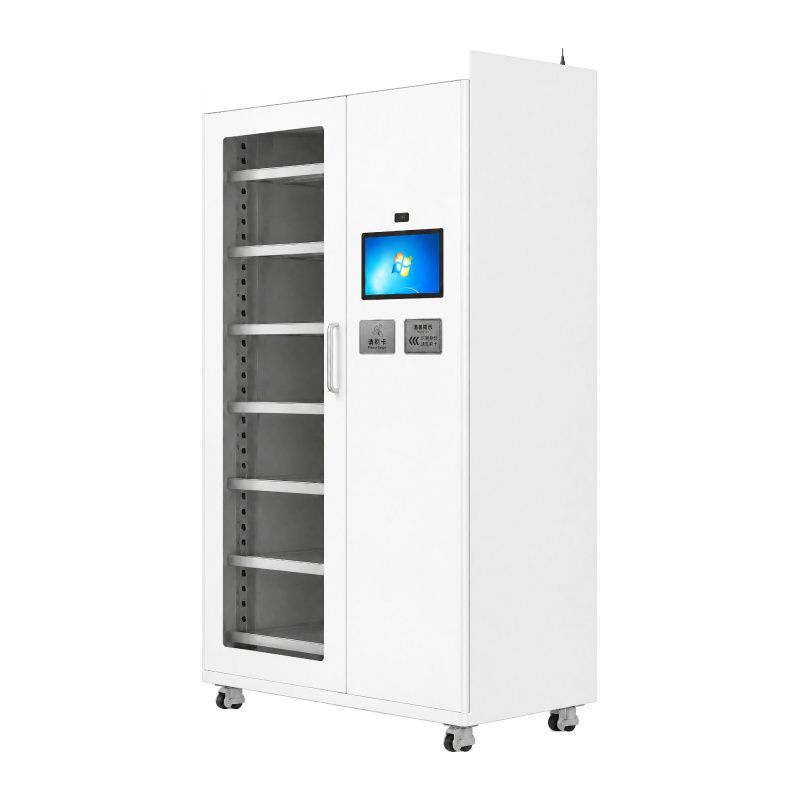

Manage tool issue, return and inventory with a touchscreen cabinet and UHF RFID identification. Users sign in, open the door and take or return tagged tools. After the door is closed, the software checks the RFID results and records the transaction or flags it for review. Administrators manage people, tools, overdue items and maintenance records.
$11000/pc
MOQ: 1 pcs · Volume discounts available on request
| Parameter | Specification |
|---|---|
| Brand | RFIDHY |
| Model / cabinet type | HY-DP005 / main cabinet |
| Nominal dimensions W x H x D | 1100 x 2030 x 550 mm* |
| Enclosure material | 1.0 mm carbon-steel sheet |
| Door window | 4 mm toughened glass |
| Shelving | Adjustable shelving; reference shelf size 971 x 500 mm |
| Mobility | 4 leveling castors |
| Touchscreen | 14-inch capacitive touchscreen; 1920 x 1080; 16:9 |
| Tool identification | UHF RFID; ISO/IEC 18000-6C / EPC Class 1 Gen 2 |
| RF configuration | Regional operating band confirmed for the destination and installed reader |
| Current user login | Bound HF card UID or account and password |
| Power supply | AC 220 V, 50 Hz |
| Reference rated power | 150 W maximum (manufacturer reference configuration) |
| Hardware interfaces | Ethernet and 2 USB interfaces (reference configuration) |
| Current software platform | Local Windows x64 application; WPF / .NET 8 |
| Reader duration | Configurable; software default 5 s after a successful reading start |
| Data import / export | Excel tool and personnel import with pre-checks; inventory, report and audit exports |
| Interface language | Chinese; any English UI scope requires separate confirmation |
* Dimensions are the nominal figures in the manufacturer specification table. Confirm the final mechanical drawing before ordering or site preparation. Hardware values describe the reference cabinet, not independent verification of the installed system. The configured RFID reading period is not a guarantee of total transaction time, tag capacity or reading accuracy. Performance depends on tags, tool materials, placement and RF conditions.
