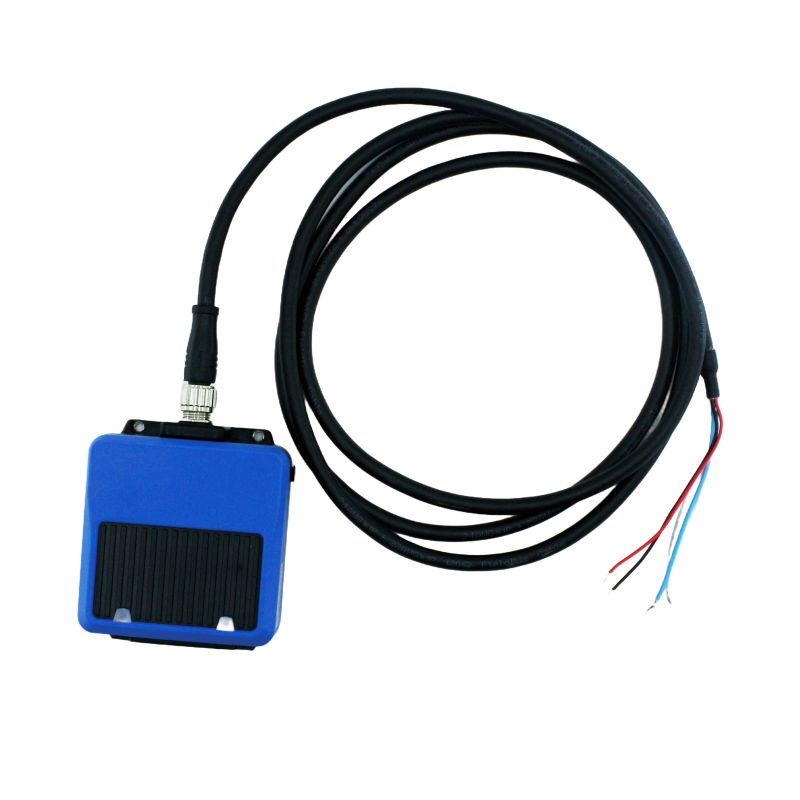

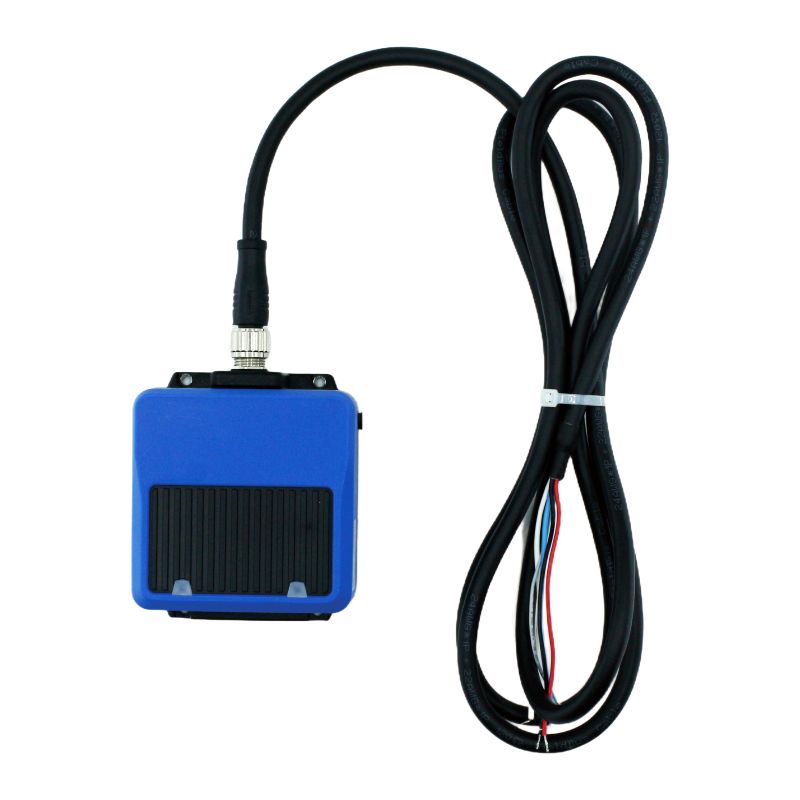

HY-R801 Industrial-Grade UHF RFID Reader Writer

HY-R801 Industrial-Grade UHF RFID Reader Writer

 Power Supply: DC 24V;
 Power Consumption: 2.9W;
 Circuit Protection: Reverse polarity protection included;
 Operating Frequency: 902 MHz ~ 928 MHz (U.S.);
 Protocol Standard: EPC Global Class 1 Gen 2 / ISO18000 6C;
 Maximum Supported Tag Capacity: 2K Bytes;
 Reading Distance: 0~2000mm (Depends on tag performance and operating environment);
 Communication Interface: RS485;
 Communication Protocol: Industrial MODBUS RTU Communication Protocol
 Operating Humidity: 10–90% RH;
 Operating Temperature: -25°C to +70°C;
 Protection Rating: IP-67;
 Housing Material: ABS + Aluminum Alloy.

Product Overview

The HY-R801 is an antenna-integrated UHF reader head operating at 920MHz to 925MHz, compliant with EPC Global Class 1 Gen 2/ISO-18000-6C standards,with a maximum output power of 26dBm. The reader supports the standard industrial communication protocol Modbus RTU, facilitating seamless integration into control systems such as PLCs. The reader integrates the RF communication protocol internally, allowing users to read tags simply by receiving data via RS485 without needing to understand complex RF communication protocols.
Constructed with a high-strength aluminum alloy housing, the reader features fast identification speed, high accuracy, moderate reading distance, and user-friendly operation. It is suitable for applications such as data collection on smart production lines and information reading.

Electrical Parameters
